Groups
HOLOPHONIX 2.1 introduced new groups for Sources and Speakers. If you need help adjusting your presets, contact User Support
The new HOLOPHONIX Groups are based on the multiple selection capabilities of the user interface. When selecting a Source or Speaker belonging to a group, the whole group will be selected.

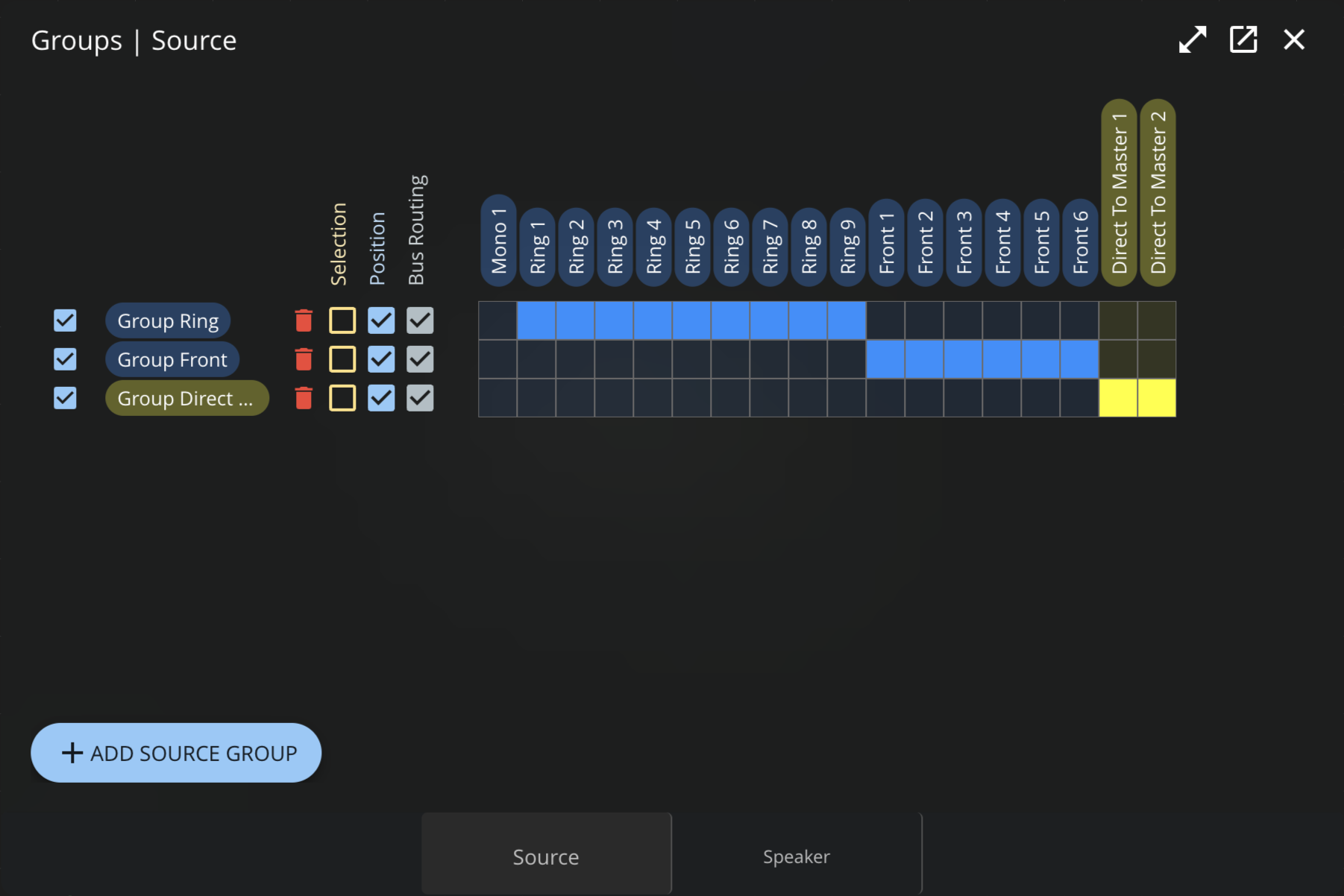

Sources Groups
Activation
By default, groups are inactive. Click on the Activate button to activate a group.
Linked Parameters
Some parameters (such as Mute, Solo, Bus assignation, Source position) can be included or excluded from the group.
Selection- When this is activated, if you select one source of the group, the whole group will be selected.
- Link the Sources positions.
- When routing a Source to a Bus, all the sources of the group will be routed to the same bus.
- Link the Sources gains.

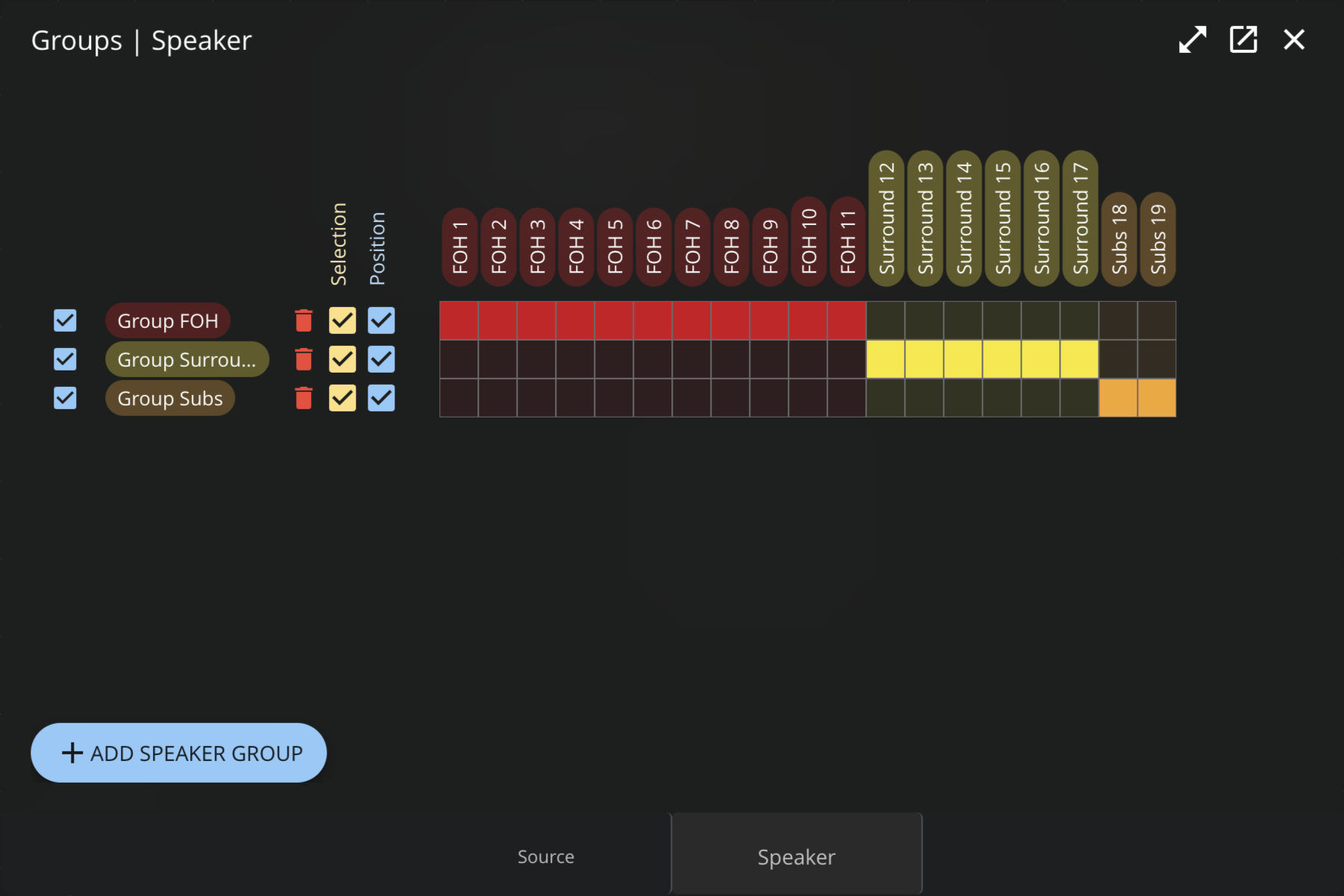

Speakers Groups
Activation
By default, groups are inactive. Click on the Activate button to activate a group.
Linked Parameters
Some parameters can be included or excluded from the group.
Selection- When this is activated, if you select one Speaker of the group, the whole group will be selected.
- Link the Speakers positions.
Speaker Groups offer a convinient way to add Spatialization Busses. Create Speaker groups for each of your sub systems (Main Speakers, Front Fills, etc.). When adding a bus, you can choose to automatically create the Bus from the selected Speaker Group. HOLOPHONIX will automatically adjust the number of channels and route the Bus outputs to the corresponding Speakers.
