Outputs

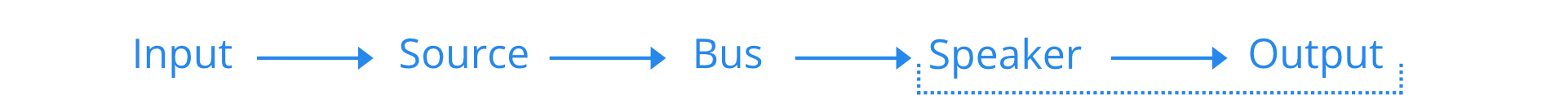

The Outputs receive signals from Speakers, Direct Routing Sources, LFE, and Monitoring, then send them to the connected audio interface :

  • If using an HOLOPHONIX Hardware processor, the signal is sent through the Dante network. Use the Dante Controller® app to route audio from the HOLOPHONIX device.

  • If using HOLOPHONIX Native the signal is sent through the audio interface selected as the Output Driver in the Audio Settings

An output can receive multiple signals simultaneously from Speakers, Direct Routing Sources, LFE, and Monitoring. Outputs can also be renamed and have their color changed in the Overview.
